M.A.T. 1220 IVANA ALEKS

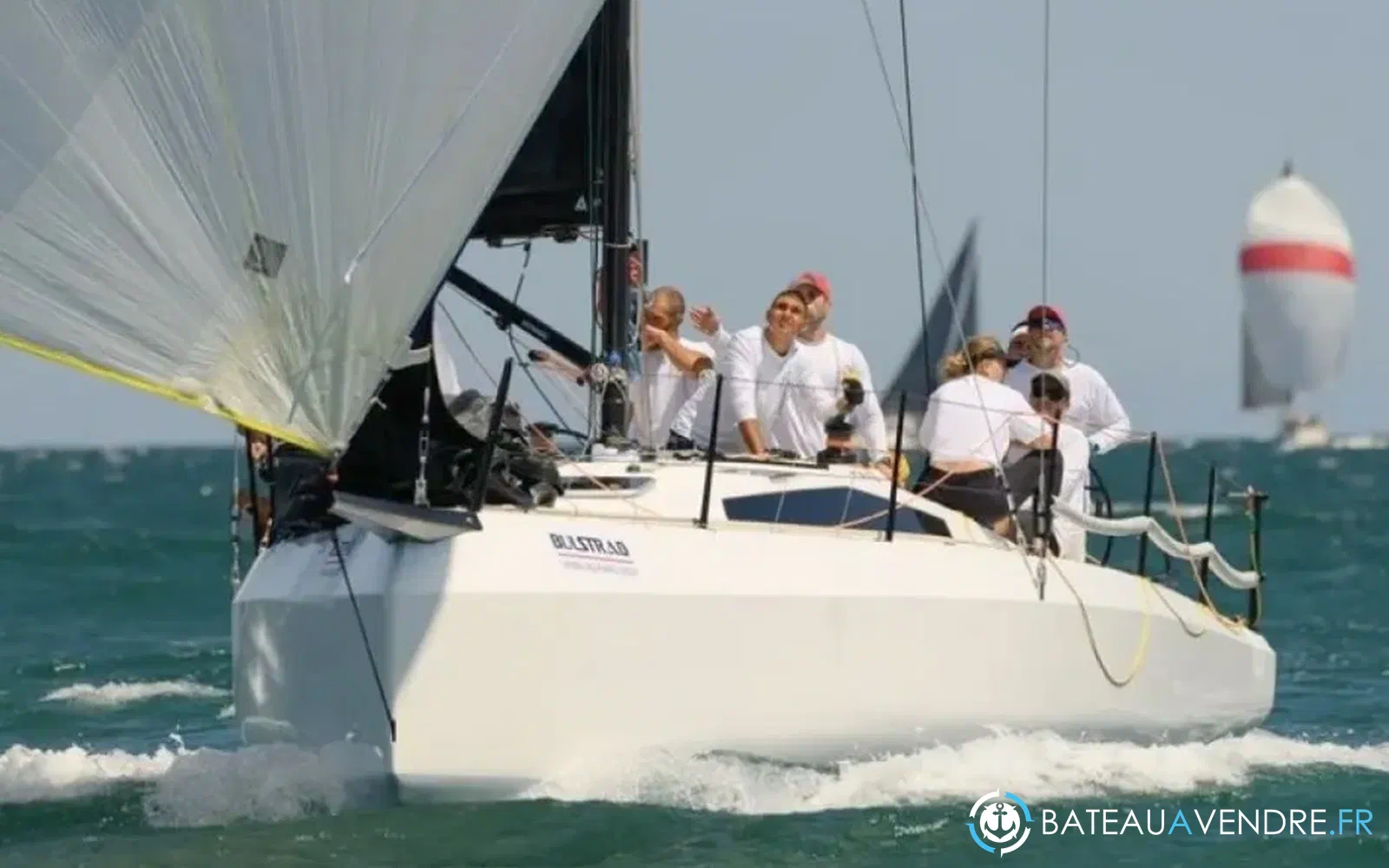

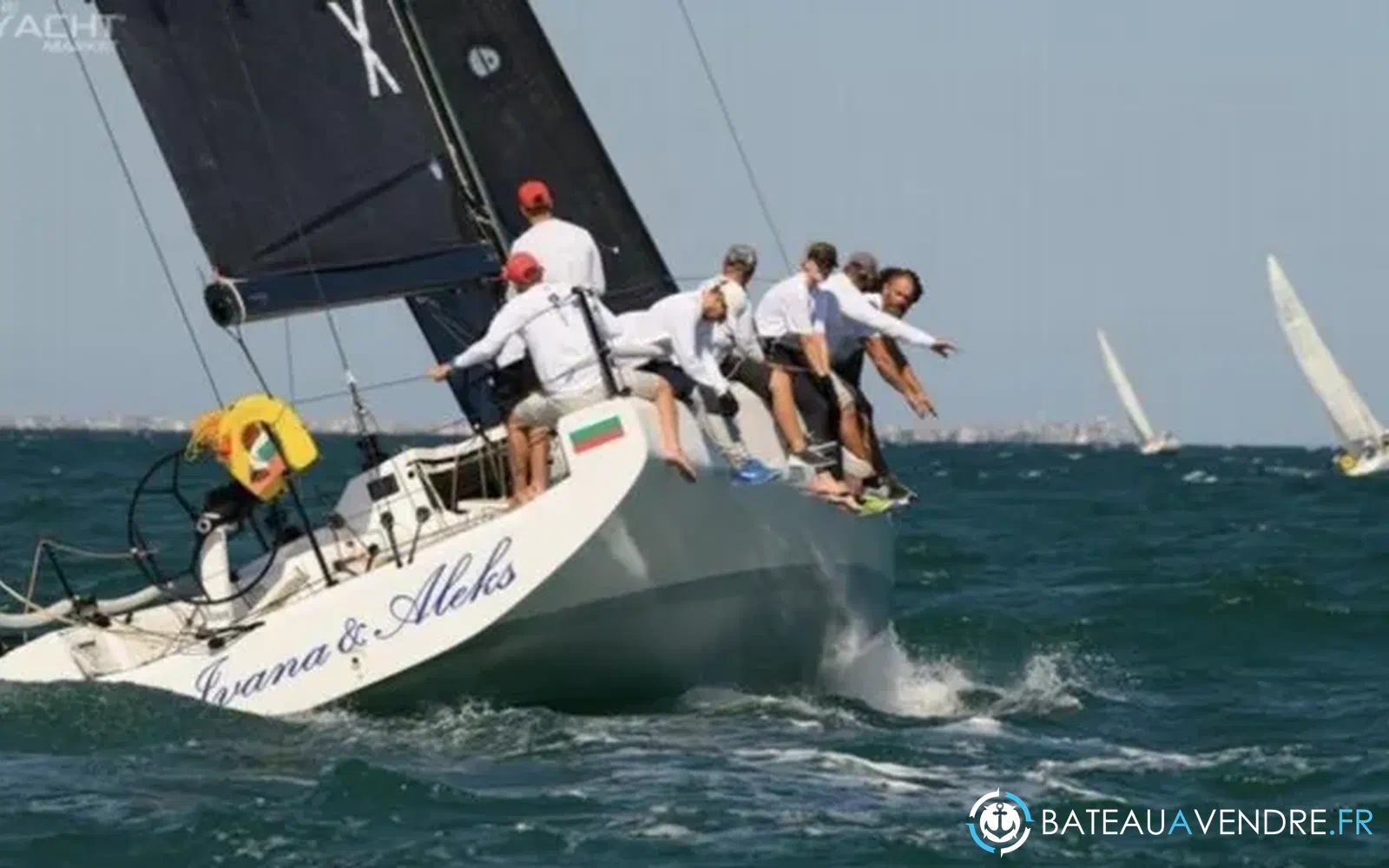

MAT1220 – HIGH-PERFORMANCE OFFSHORE RACER, READY TO COMPETE

The MAT1220 is an outstanding example of a modern high-performance offshore racer-cruiser, combining proven racing potential with an exceptionally high level of preparation and equipment.

Professionally maintained and continuously upgraded by experienced owners, this yacht is presented in excellent condition and ready for immediate competition. Every aspect of the boat has been developed with a clear focus on performance, reliability and efficiency, making her a highly competitive platform for both offshore campaigns and inshore racing.

A substantial investment has been made in sails, rig, deck equipment, electronics, safety systems and technical upgrades, ensuring that the yacht is fully equipped and ready to perform from day one. Her comprehensive specification provides a new owner or racing team with the opportunity to step directly into competitive sailing without the need for major additional investment.

KEY FEATURES

Extensive and high-quality North Sails 3Di inventory, including dedicated offshore sails.
High-performance carbon rig with rod standing rigging.
Premium deck hardware and racing equipment from leading sailing manufacturers.
Advanced B&G electronics and performance instrumentation.
Comprehensive offshore safety equipment, prepared for racing requirements.
Regular maintenance programme with continuous upgrades, replacements and technical improvements.
Fully equipped and professionally prepared for offshore and inshore racing.

With an IRC TCC of 1.155 and an IRC Standard Certificate No. 48758 (2024), this MAT1220 represents a serious racing proposition for an owner or team seeking a competitive, reliable and turnkey yacht.

Whether the objective is major offshore events, ORC/IRC racing or demanding inshore regattas, this MAT1220 offers the right combination of performance, preparation and proven racing equipment to start competing immediately.

DESIGN

MAT 1220 by Mark Mills
Vessel: IVANA & ALEKS
Builder / Design M.A.T. Ltd. / M.A.T. 1220
Year built: 2023
Hull Identification No. TR-MAT12205C323

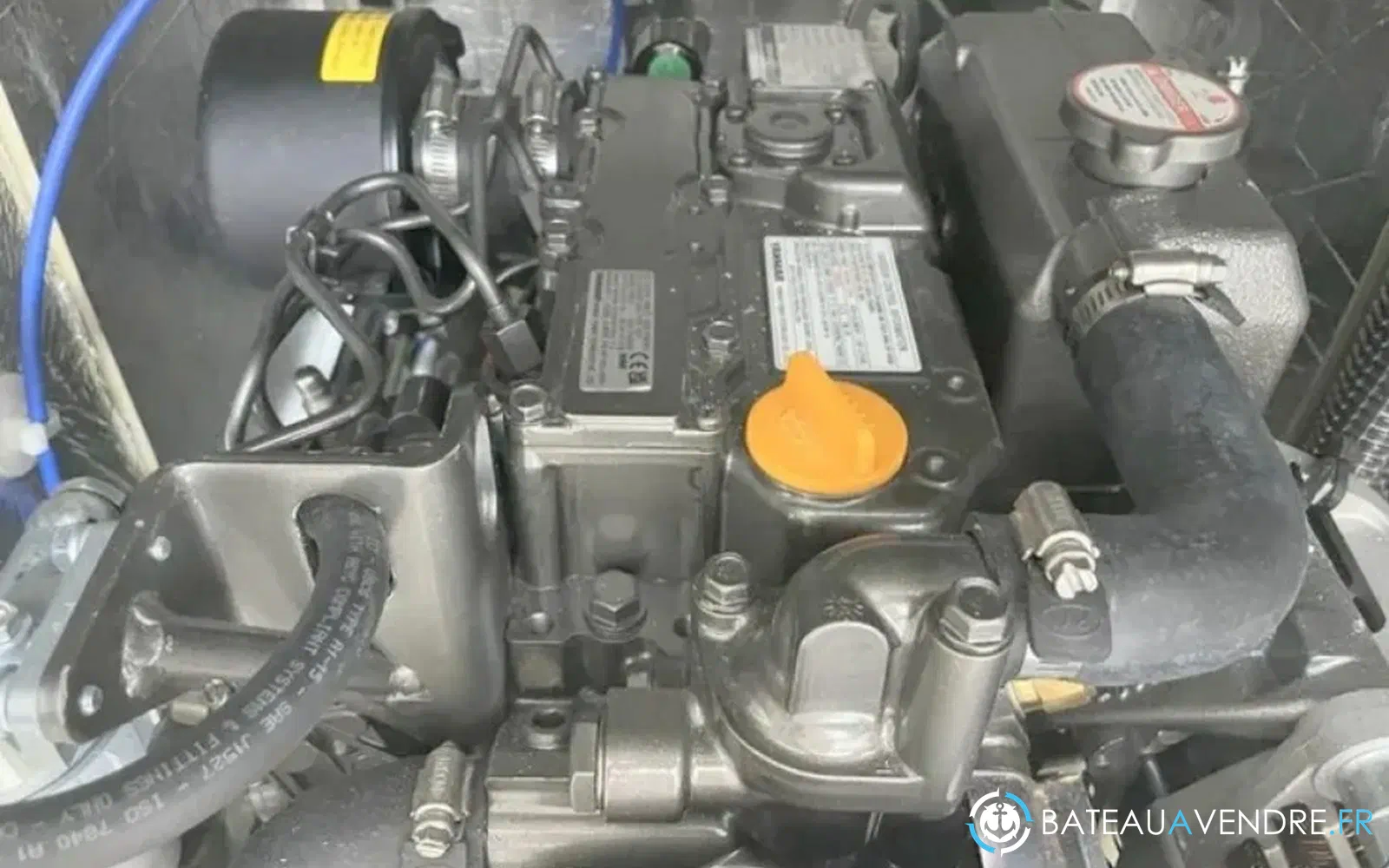

ENGINE
Engine Yanmar 3YM30AE-C SD diesel inboard
Engine serial no. E20154
Cylinders / Power 3 cylinders / 29 hp (21.3 kW installed power)
Propulsion Sail-drive; 2-blade folding propeller
Fuel tank 60 L Vetus

TANKS
Fuel: 60 l
Water: 100 l
Tanks notes
Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves

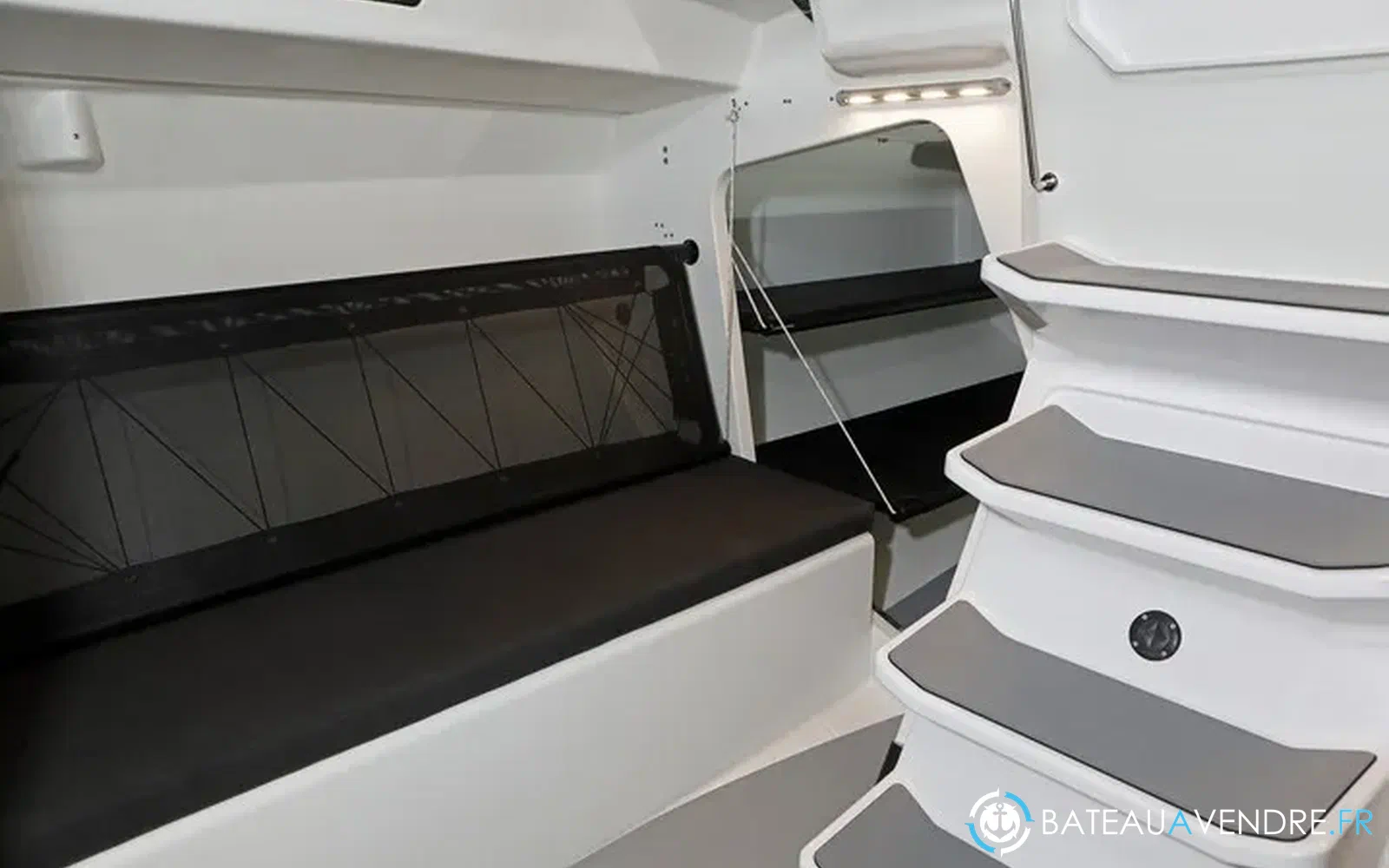

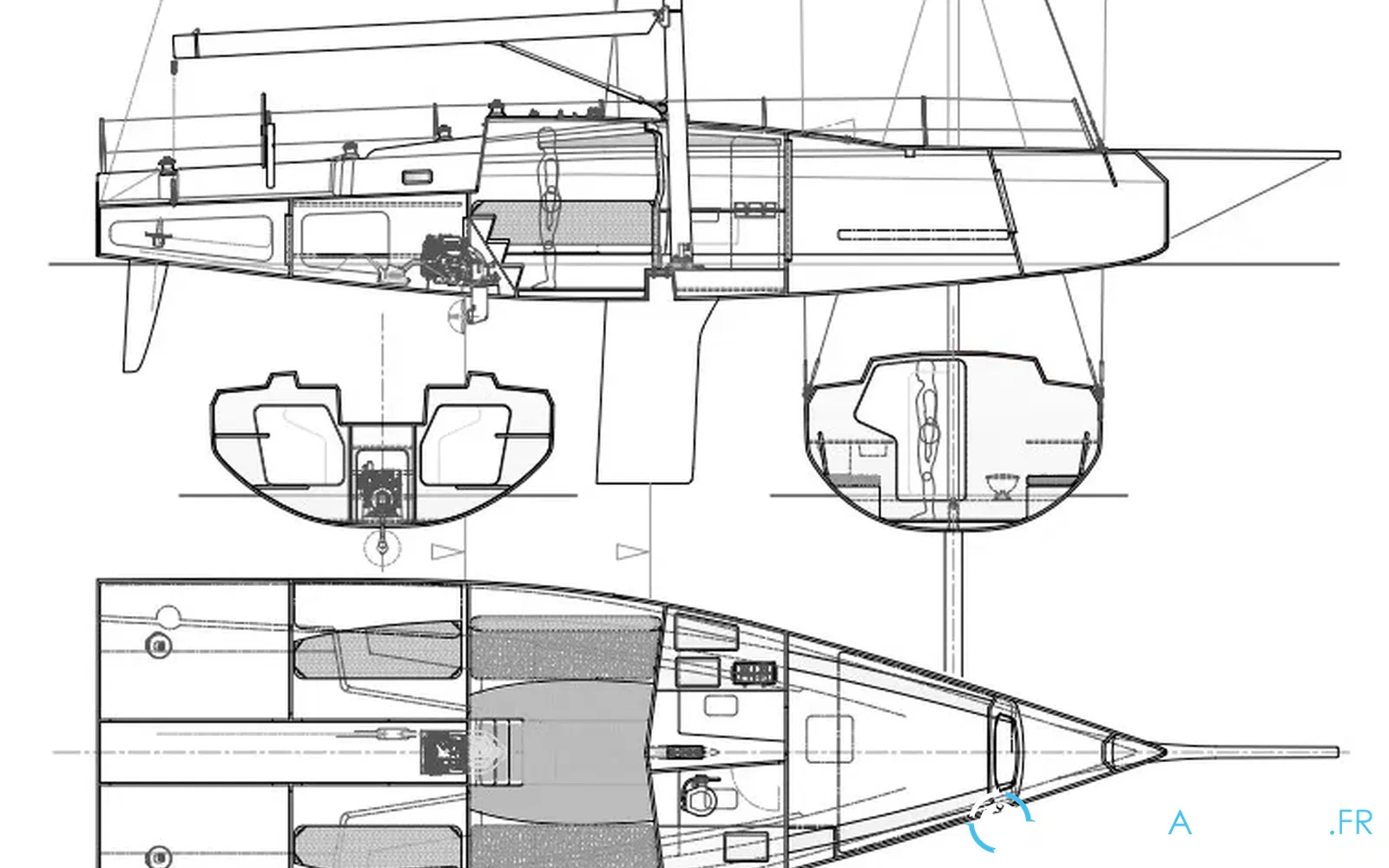

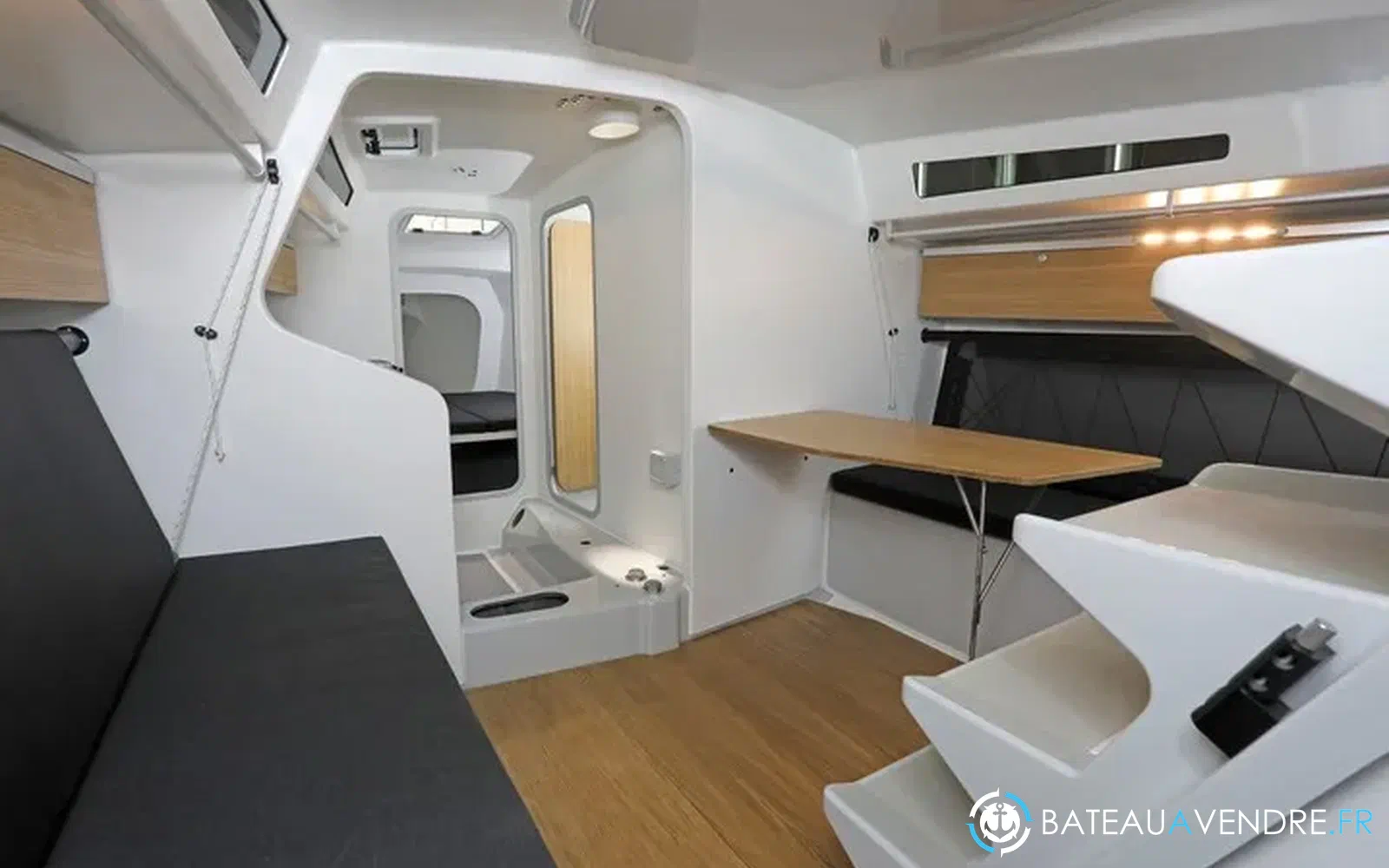

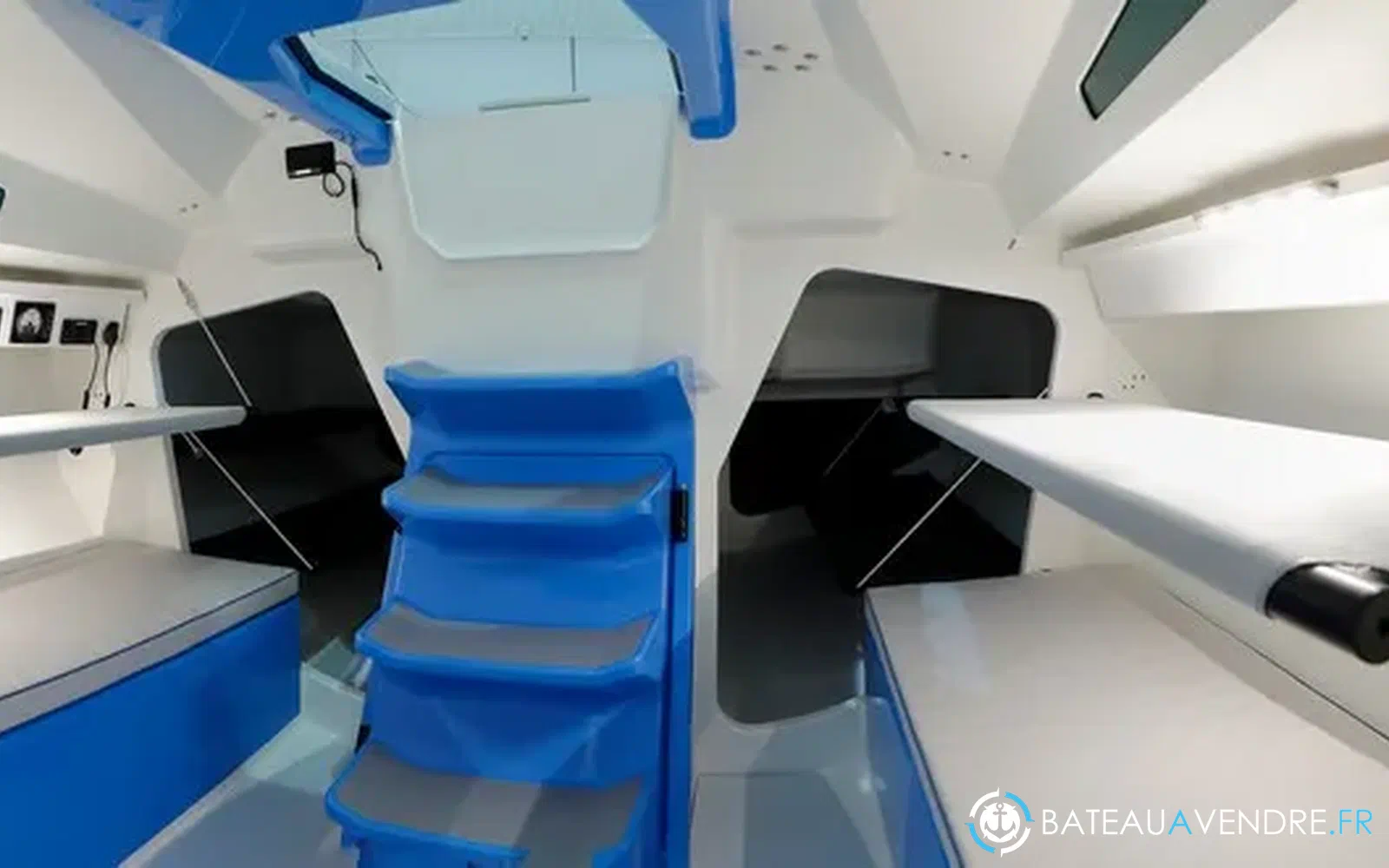

ACCOMMODATION
White painted interior hull and deck surfaces
High density foam cushions Central salon area with settees port & starboard Galley between mast and mast bulkhead, s/s sink, cooker, refrigerator compartment.
Enclosed head to forward of mast bulkhead.

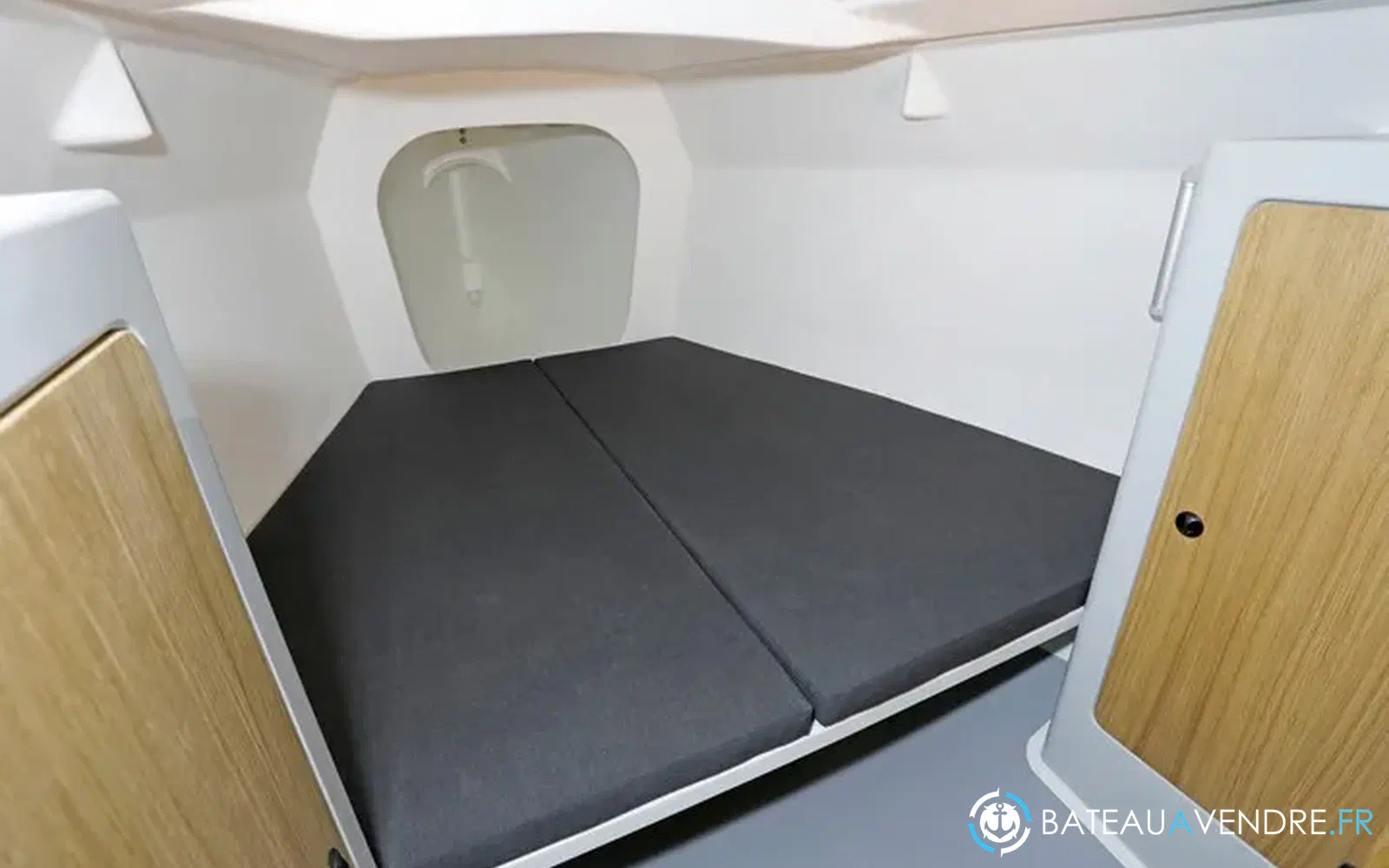

Double berths port & starboard aft, portlights for naturel light and fresh air.
100 L Plastimo flexible fresh-water tank; Jabsco pressurised water system
Stainless-steel hand basin and galley sink; pull-out shower mixer
Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves
Shower: yes

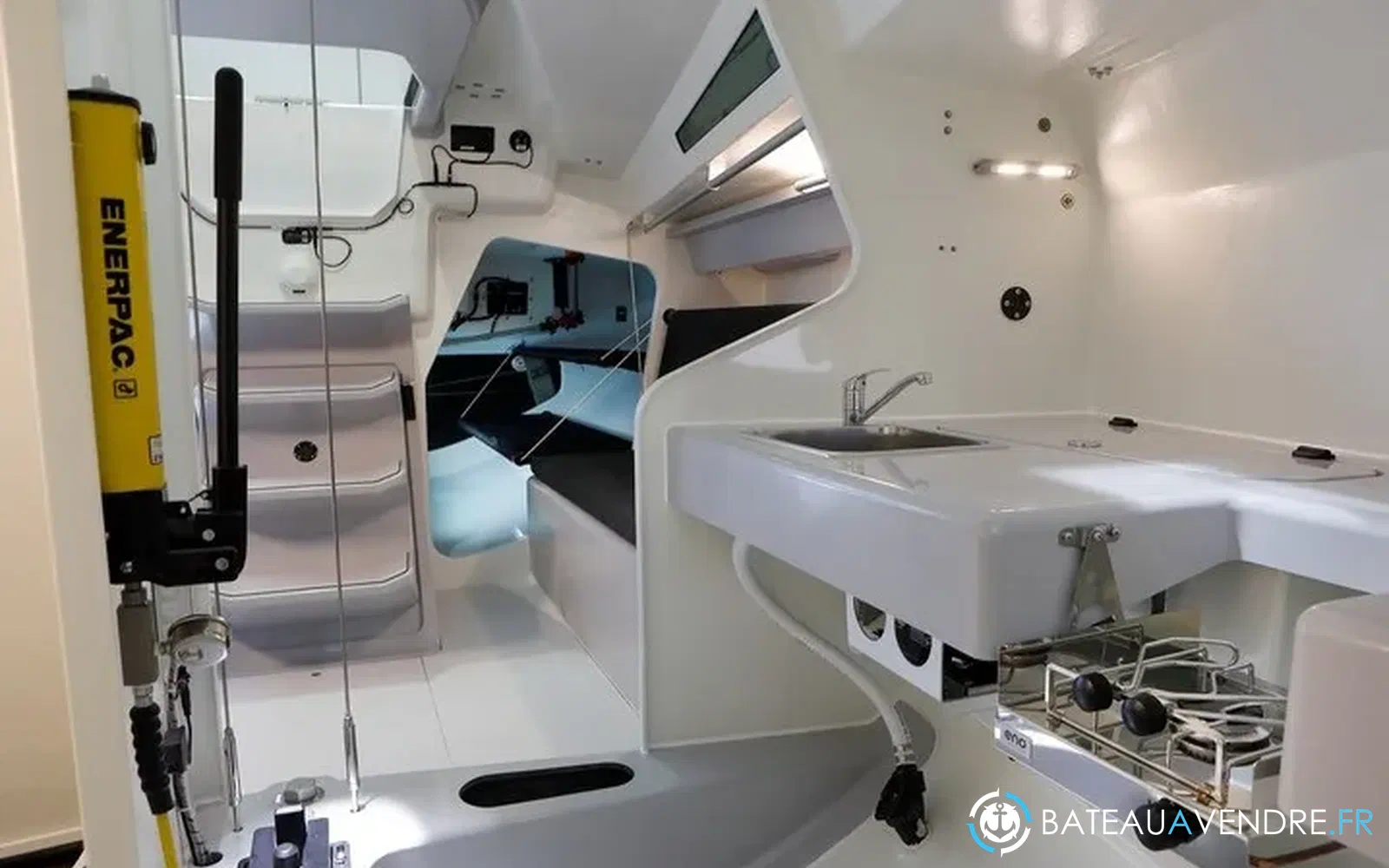

GALLEY
Refrigerator: yes.
Galley notes
Stainless-steel hand basin and galley sink; pull-out shower mixer
100 L Plastimo flexible fresh-water tank; Jabsco pressurised water system
Stainless-steel hand basin and galley sink; pull-out shower mixer
Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves

NAVIGATION INSTRUMENTS

Electronics: B & G H5000
GPS: Yes
VHF:YES
Compass: Plastimo Contest 130 Compass
Navigation instruments notes:
B&G; H5000 CPU Performance; VMHU pack 810 mm
4 x H5000 Graphic displays on mast
Triton 20/20 displays: cockpit x1, cabin x1
DST800 speed and depth sensor; H5000 3D motion sensor
ZG100 GPS antenna; Precision 9 compass
V20 marine VHF radio
2 x Zeus3S 9" multifunction touch chartplotters on steering pedestals
Zeus3S 12" multifunction touch chartplotter in cabin
NAIS-500 Class B AIS with GPS-500 antenna
Plastimo Contest 130 compass

ELECTRICAL
Battery charger: yes
Electrical notes:
Mechanical, Electrical & Water
Victron Energy 50A battery charger; 12 V DC system; 60A engine alternator
1 x 110 Ah Victron Energy AGM house battery; 1 x 70 Ah starter battery
BEP 12 V DC 8-way distribution panel with automatic circuit breakers
Dimmable Frensch LED interior lighting
100 L Plastimo flexible fresh-water tank; Jabsco pressurised water system
Stainless-steel hand basin and galley sink; pull-out shower mixer
Jabsco manual bilge pump 3,000 L/h; Rule electric bilge pump 3,400 L/h
Jabsco marine toilet; Tru Design Marelon flush seacocks and ball valves

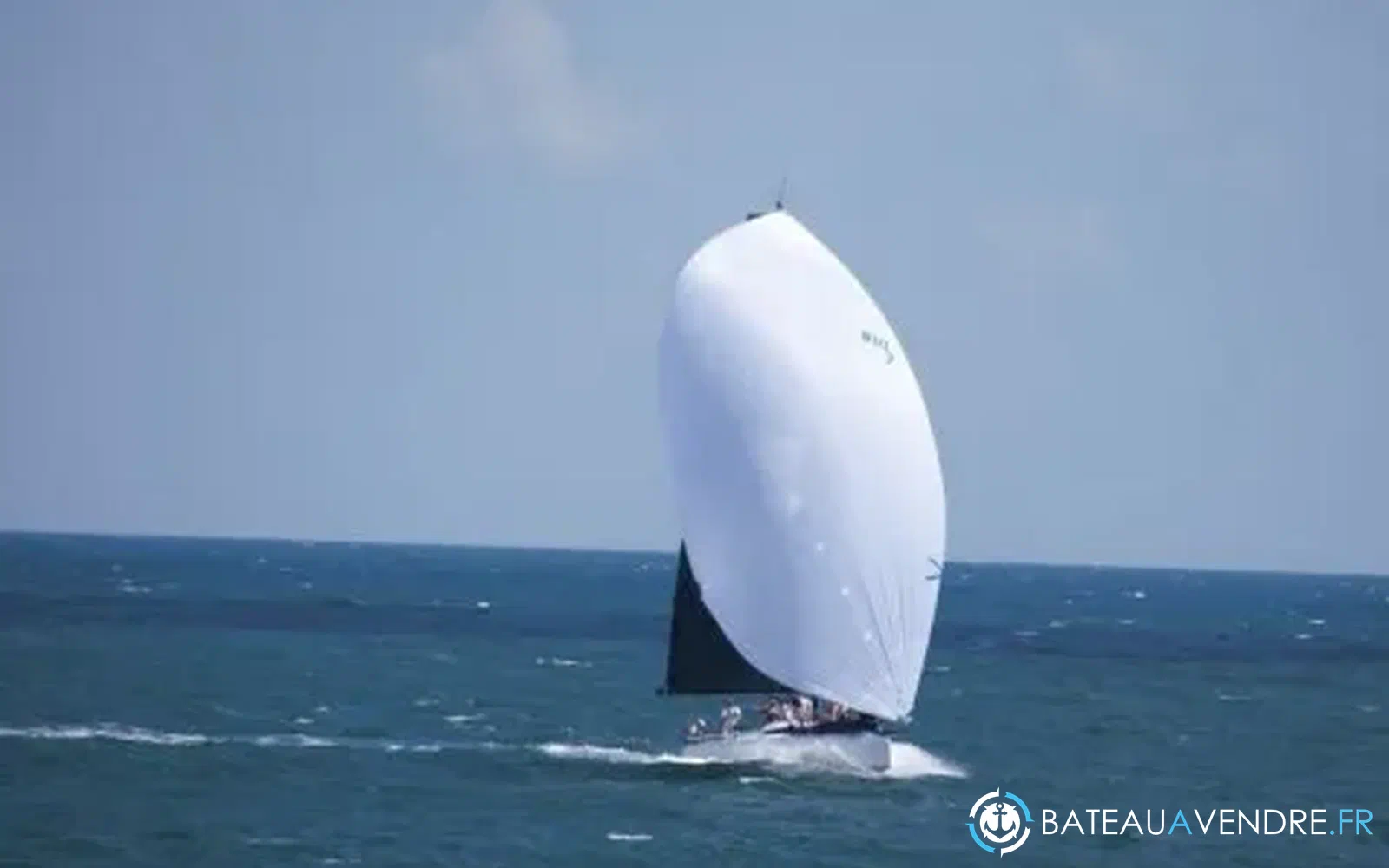

SAILS

SAIL INVENTORY

Square Top Mainsail — 3Di RAW 870, 16,800 DPI — 54.2 m²
Pinhead Mainsail — OneSails Forte 225R — 49.76 m² — only used once
J1-A HELIX Jib Light — 3Di RAW 870, 10,850 DPI — 39.2 m²
J2-A HELIX Jib Medium — 3Di RAW 870, 14,700 DPI — 39.2 m²
J3-A HELIX Jib Heavy — 3Di RAW 870, 16,800 DPI — 37.4 m²
MH0-A HELIX MastHead Zero — NPL Code Xi TF1 Xi04/06 [Offshore] — 115 m²
A1-A Light Asymmetric — PowerKote PK66/55 CTDR — 162 m²
A2-A Runner Asymmetric — PowerKote PK66/77 CTDR — 171 m²
A4-A Heavy Runner Asymmetric — PowerKote PK99/88 CTDR — 167 m²
A5-A Fractional Heavy Runner — PowerKote PK133 [Offshore] — 130 m²
JS-A HELIX Jib Staysail — 3Di RAW 760, 8,820 DPI [Offshore] — 14 m²
SS-A Spinnaker Staysail — NPL Code Xi Xi04 CD — 31.1 m²
Storm Jib — Polyester High Visibility 10 oz — Storm Orange
Storm Trysail — Polyester High Visibility 8 oz — Storm Orange

Mast:Carbon
Boom: Carbon

Rigging & Spars
• Axon carbon fibre mast and boom
• BSI rod rigging

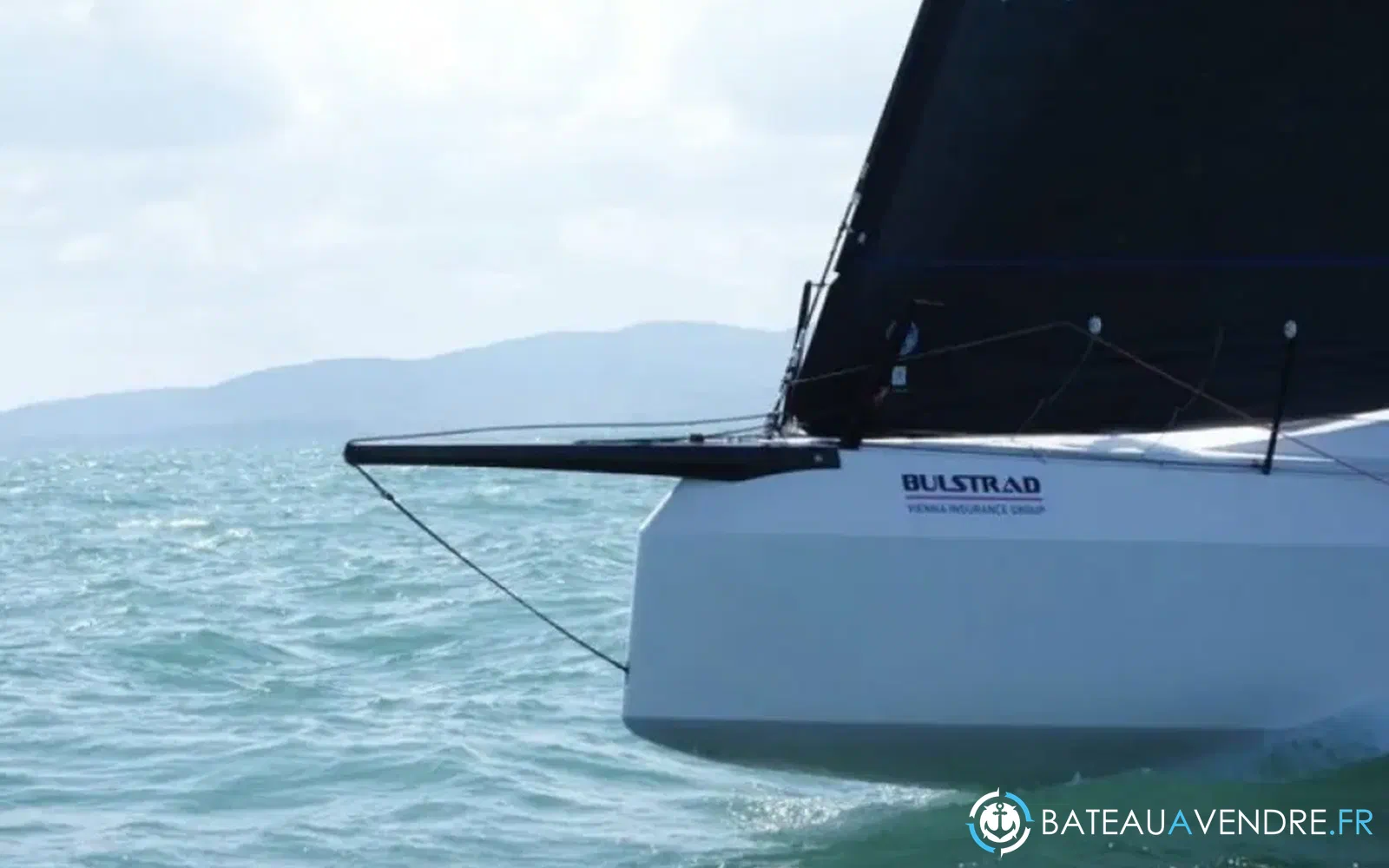

• Prepreg carbon autoclave-cured bowsprit
• 2 x masthead Kevlar 7T backstay tails to winches
• 2:1 main halyard; double masthead sheave box for spinnaker
• 2 x sheave box at headstay height for jib / genoa / solent
• Aluminium spreaders, carbon gooseneck and internal mast jack

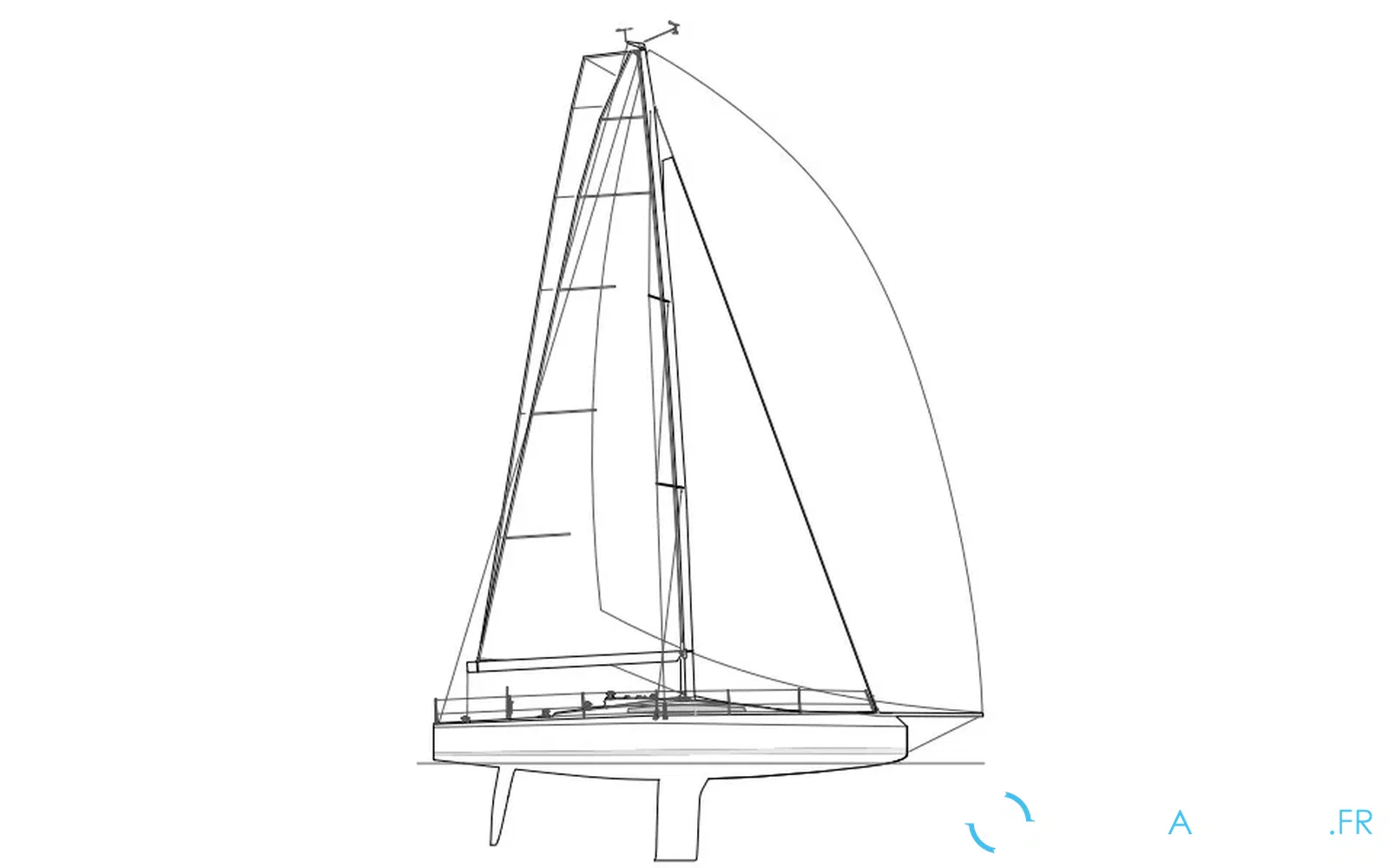

IRC RATING & RIG
IRC Certificate No.: 48758 — Standard Certificate (2024)
Sail Number: BUL7
IRC Design: MAT 1220 2.50 Fin6
TCC: 1.155
Non-Spinnaker TCC: 1.124
Crew: 10
Crew Weight: 850 kg
LWP: 10.93 m
DLR: 135
Rig: Bermudian Sloop
Mast: Carbon
Standing Rigging: Rod
Rig Factor: 1.017
P: 15.36 m
E: 5.26 m
J: 4.79 m
FL: 16.53 m
STL: 7.01 m
Rated Headsail Area: 38.96 m²
Rated Spinnaker Area: 165.31 m²
Maximum Headsails Carried: 3
Flying Headsails: 0
Maximum Spinnakers Carried: 3

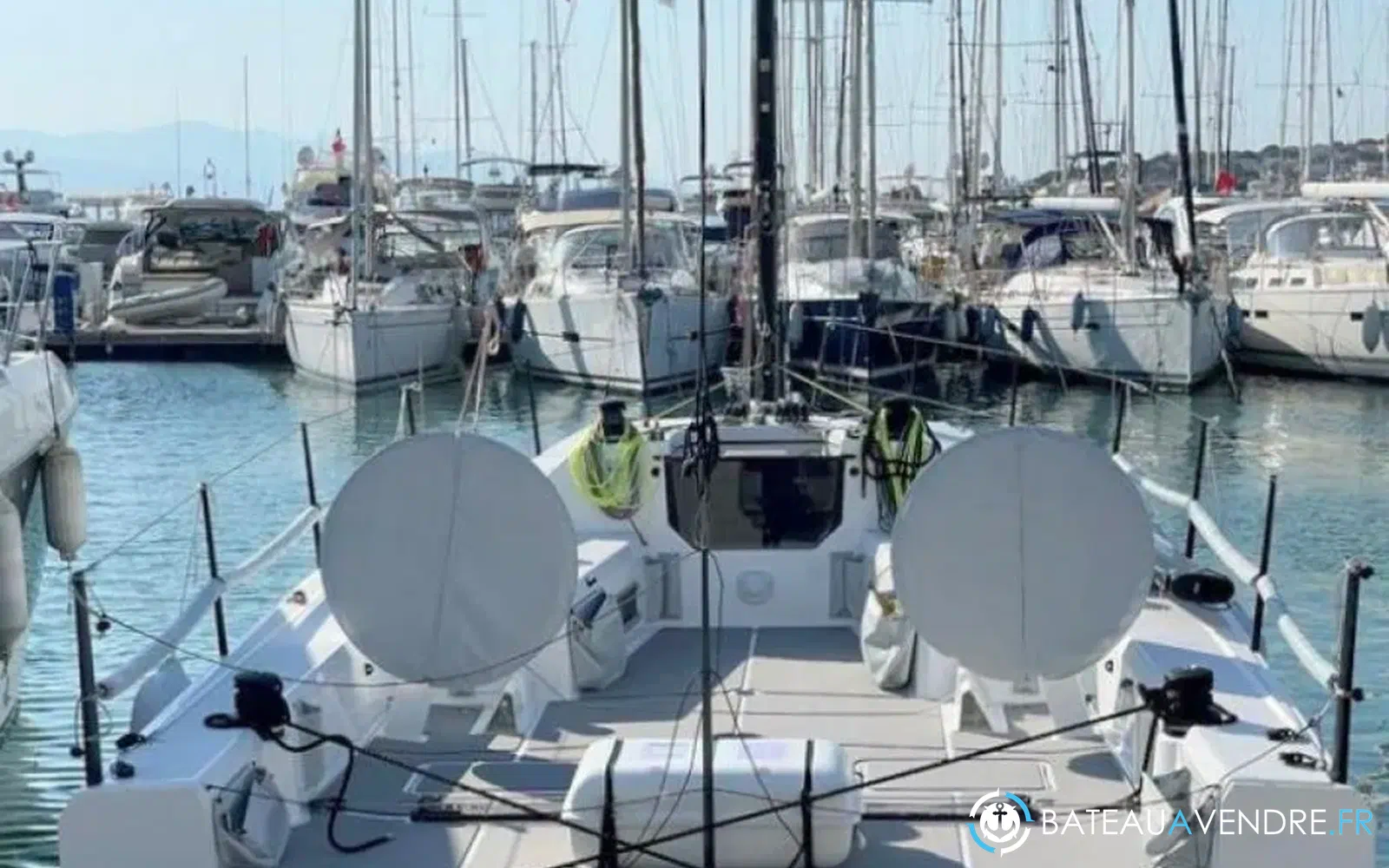

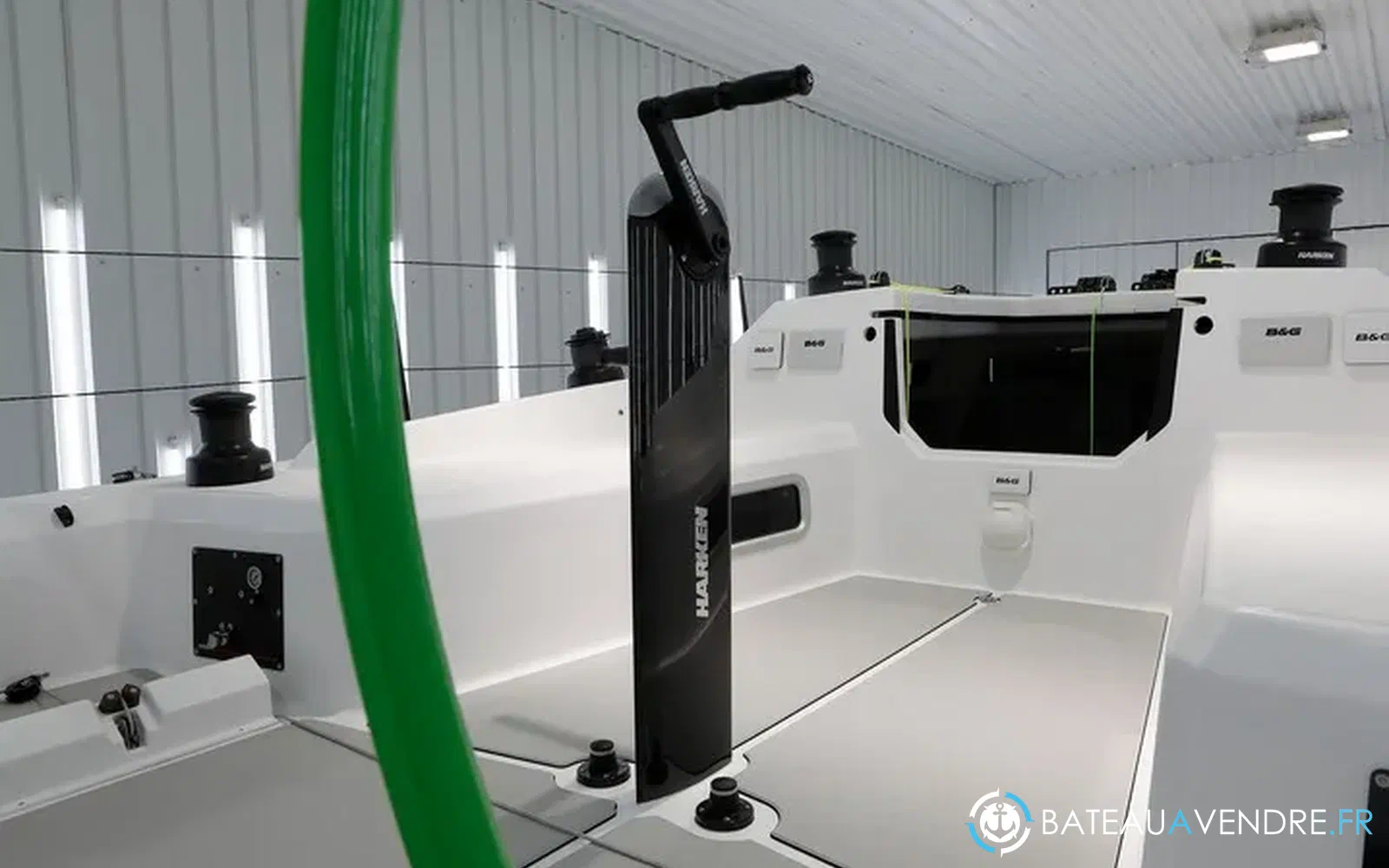

DECK EQUIPMENT

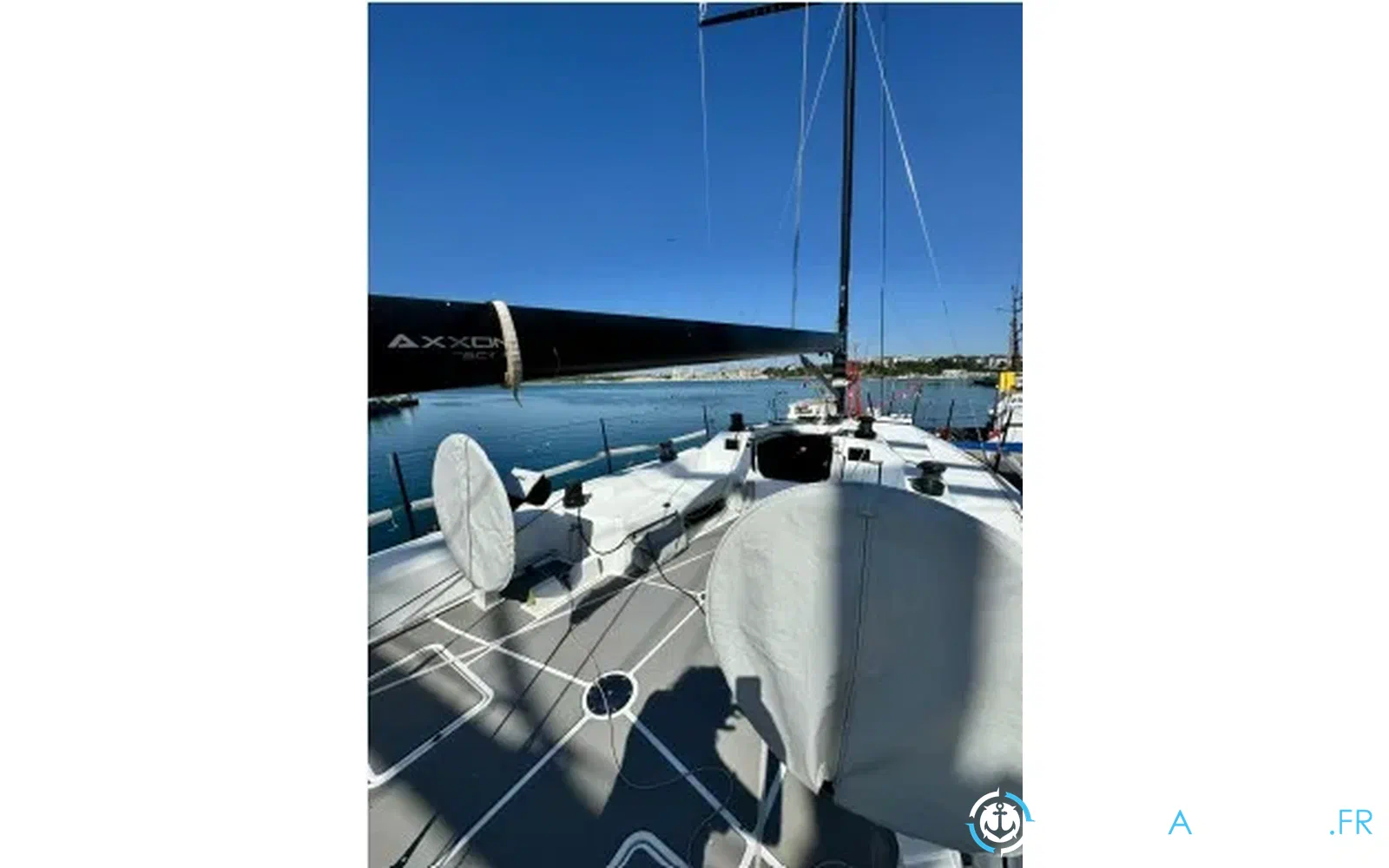

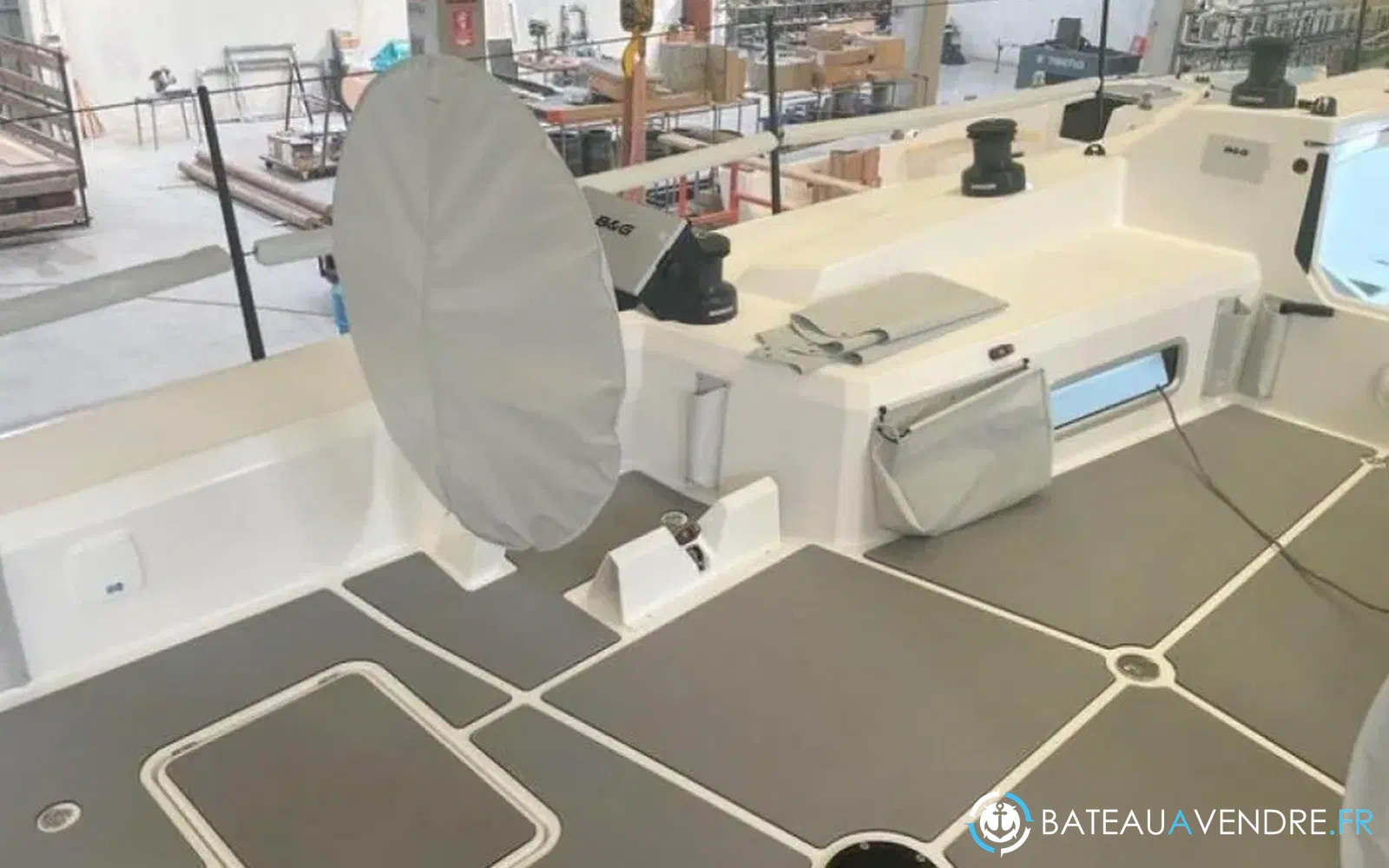

Deck Hardware & Exterior:
Karver KF3.0 Furler V3 Standard PF300300 for MH0
Karver KF1.5 Furler V3 Standard PF300150 for jib staysail
Karver PF350000 0.9T furler for spinnaker staysail
Composite black stanchions, aero pushpit and pulpit
Grey SeaDek non-skid soft cockpit covering
8 x Harken B10AL winch handles
2 x Harken B46.2 STA self-tailing 2-speed primary winches
2 x Harken B40.2 STA self-tailing 2-speed mainsheet winches
2 x Harken B40.2 STA self-tailing 2-speed halyard winches
Harken block and car package; transverse jib tracks; Spinlock XTS rope clutches
Custom tempered-glass coachroof windows; 2 opening Lewmar cockpit portlights
Large opening Vetus foredeck hatch and recessed companionway sliding hatch

SAFEETY
CE Registration: Category A - 12 persons / max load 950 kg
Fire-extinguishers: 1

Safety Equipment Notes
Lalizas ISO 9650-1 12-person canister liferaft
Fortress Guardian G-16 aluminium emergency racing anchor, chain and line
2 x 2 kg fire extinguishers; fire blanket; radar reflector; first-aid kit
Man-overboard rescue system; emergency ladder; safety lines and cockpit anchoring padeyes
Mainsail cover, 2 steering wheel covers, 6 lifeline hiking pads, 8 winch-handle pockets and cockpit tidy bags

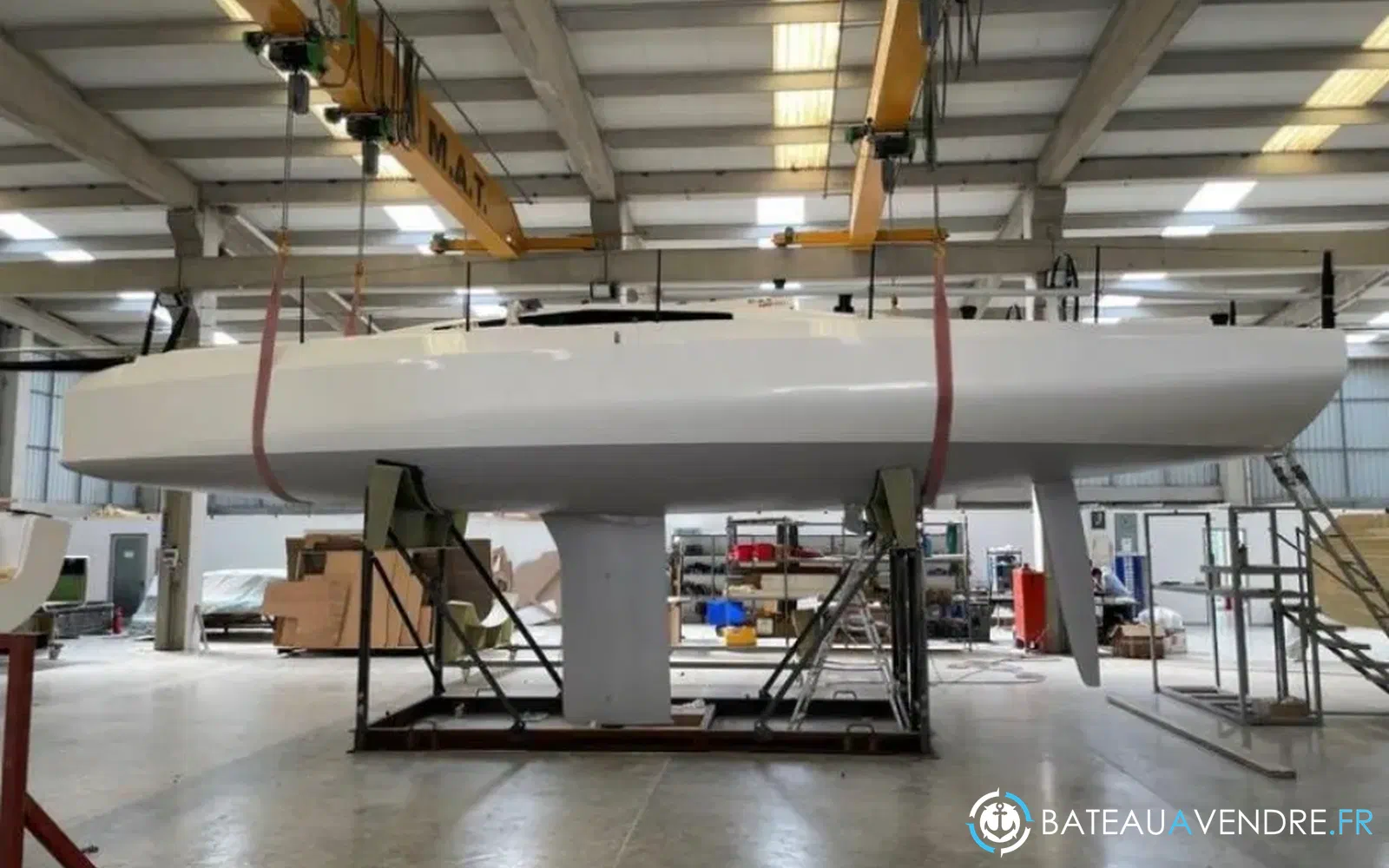

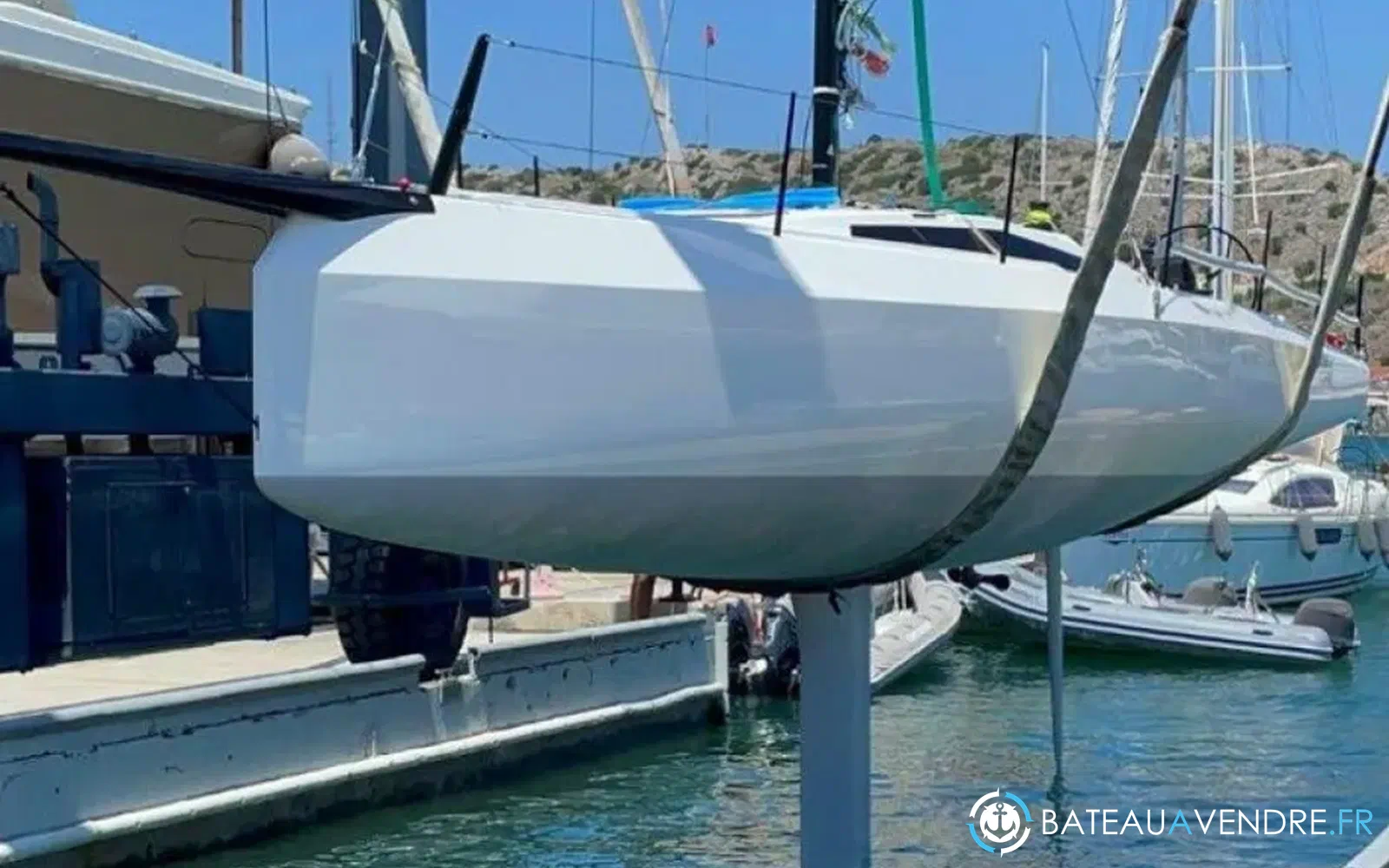

CONSTRUCTION
Keel: LEAD
Construction Rigid monohull, moulded fibre reinforced plastic
CE design category Category A - 12 persons / max load 950 kg

Keel, Rudder & Steering

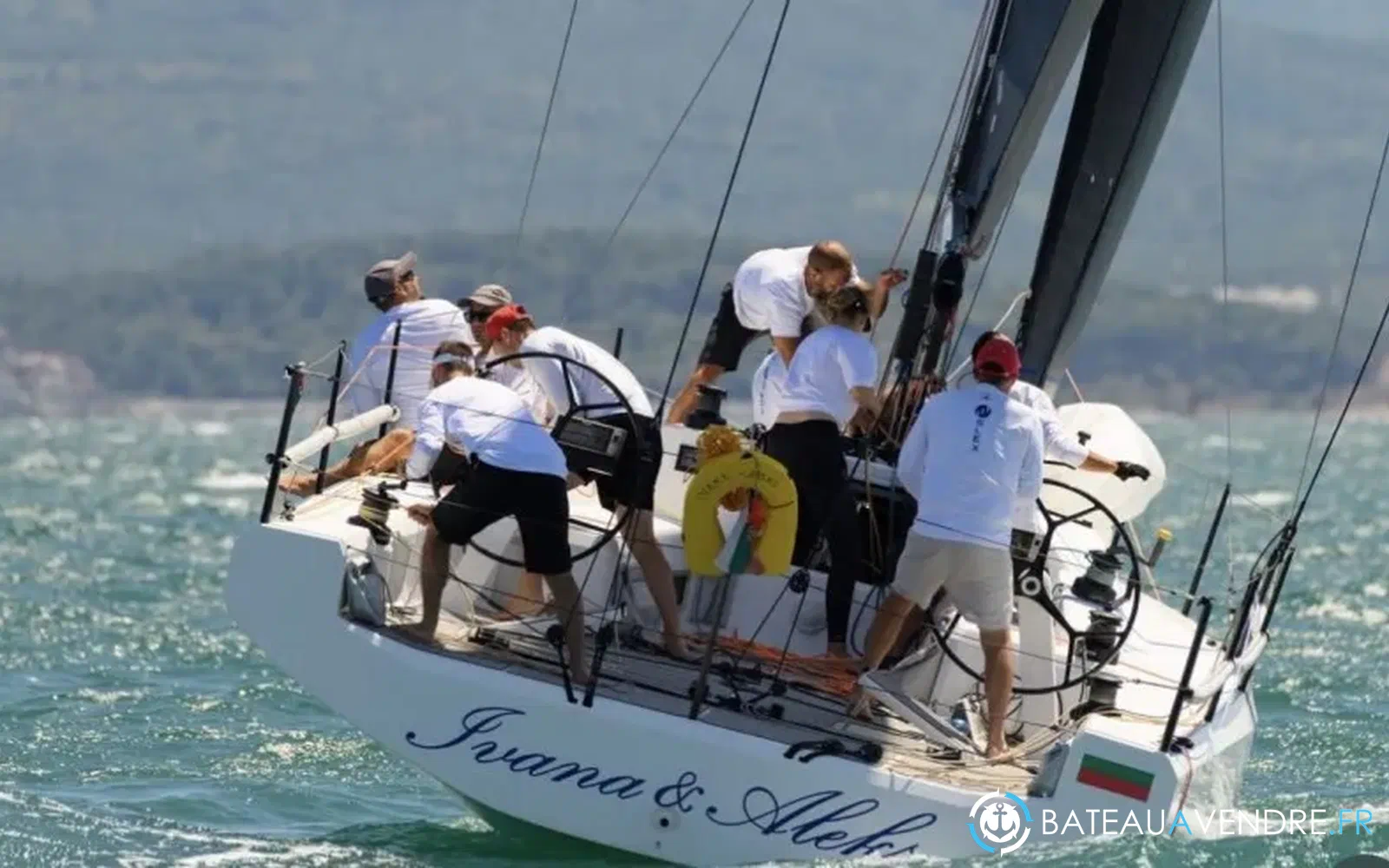

2 x steering wheels
CCI Composites carbon fibre rudder stock and composite rudder
Jefa high-performance self-aligning top / bottom rudder bearings
Antimony-hardened lead fin keel - 2,400 kg
Lead keel CNC machined to designed shape

EXTRAS


4 x Canvas Work Fenders
1 x Mainsail Cover
6 x Lifeline Pads for Hiking
8 x Winch Handle Pockets
2 x Cockpit Tidy Bags — Runner Tails, 50 × 20 cm
2 x Cockpit Tidy Bags — Sheets, 80 × 30 cm
1 x Spinnaker Drainer Mesh for Front Bulkhead
2 x Steering Wheel Covers
