Pinball Boat Pinball E-hybrid

Catamaran with hybrid propulsion (gasoline / electric) from PINBALL by OCQUETEAU.

A TYPICAL CATAMARAN HULL

The hull is the DNA of the boat.

With two slender bows like two blades of a knife, it offers reduced resistance to movement in displacement, ideal for electric propulsion.
At high speed, the transition to sea is smooth, the boat cuts through the wave rather than jumping over it.
At anchor, the boat is stable, the two separated hulls naturally attenuate roll.

The Pinball is primarily powered by a MERCRUISER V8 350 hp inboard engine

The REGEN electric motor recharges the battery in 2 hours. When planing, it adds its instantaneous power of 30 hp to that of the inboard engine.

As soon as the boat is planing, the thrusters empty and the boat behaves as if they did not exist.
The boat advances and maneuvers without articulated parts or outside propeller apart from the hull!

The electric motors are powered by a 20 kWh Lithium battery with 1 hour 15 minutes of autonomy at 5 knots.
The inboard engine is turned off and the Z-drive pod is raised.

FULL ELECTRIC RANGE:
THE TUBE PROPULSION AS WELL AS THE HULL WERE DESIGNED TO OFFER THE BEST PERFORMANCE.

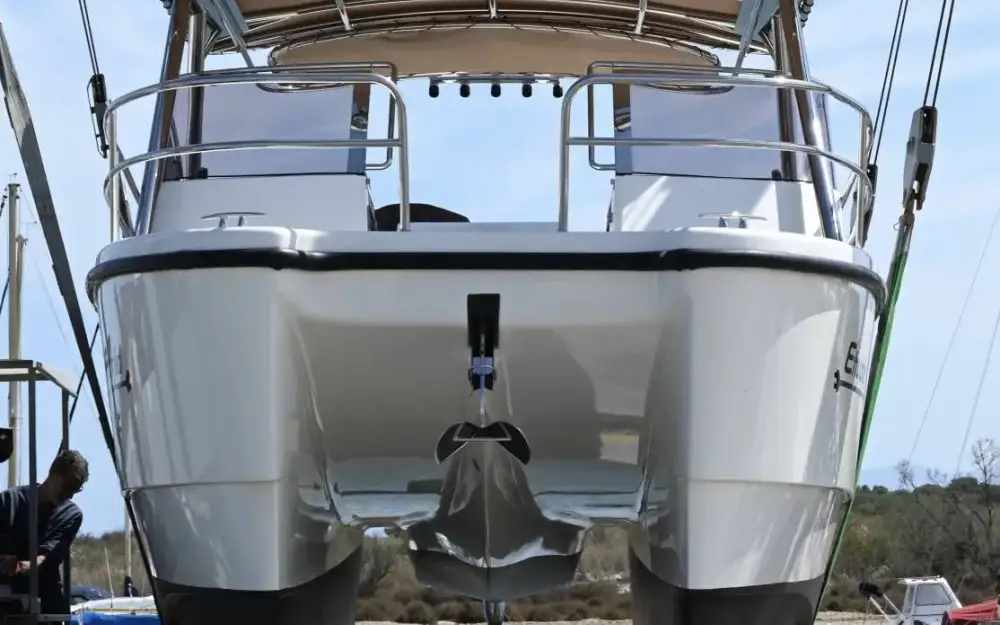

The thrusters are 30 cm diameter tubes, located at the level of the propeller, shaped to accelerate water flow in forward gear.
Autonomy is 2 hours at 4 knots and 1h20 at 5 knots.
Battery empty? Switch to hybrid mode and the batteries will be automatically recharged!

9 meters long, the Pinball is easy to pilot, even for less experienced users.
In terms of controls, nothing superfluous, the boat is standardly piloted with a steering wheel and a single throttle.
The switch between hybrid / electric mode is done via two LED switches, respectively yellow and blue.
A 10“ screen enhances understanding of the boat's operation.

STANDARD EQUIPMENT:

• STAINLESS STEEL TTOP 8.2 m² expandable (+2.6 m²), with quick attachment above for paddle* or inflatables kayaks*
• Sunbathing area 6.2 m²
• Built-in gas grill (plancha) Cooking surface 30 cm x 45 cm
• External sink
• Drawer refrigerator: 100 L
• Reclining aft platform + 1.5 m² usable surface
• Electric windlass with control at the helm and at the mooring locker
• Front socket for electric inflator*
• Port side half cabin with toilet, shower, sink, seawater electric toilet with black water tank
• Starboard side half logistic cabin with storage, 8 bins 30 cm x 40 cm
• Deck shower

*not included

MANUFACTURER DATA:

• Overall Length: 9 m
• Hull Length: 8.35 m
• Width: 2.97 m
• Air Draft: 3.25 m
• Draft: 0.5 m
• Light Displacement: 3.8 t
• Certification: C for 15 persons
• Fuel capacity: 400 L
• Water capacity: 135 L
• Igloo Cabin 1
• Sleeping capacity: 2

The Pinball is an easy, friendly electric boat equipped with an impressive hybrid electric propulsion system.
