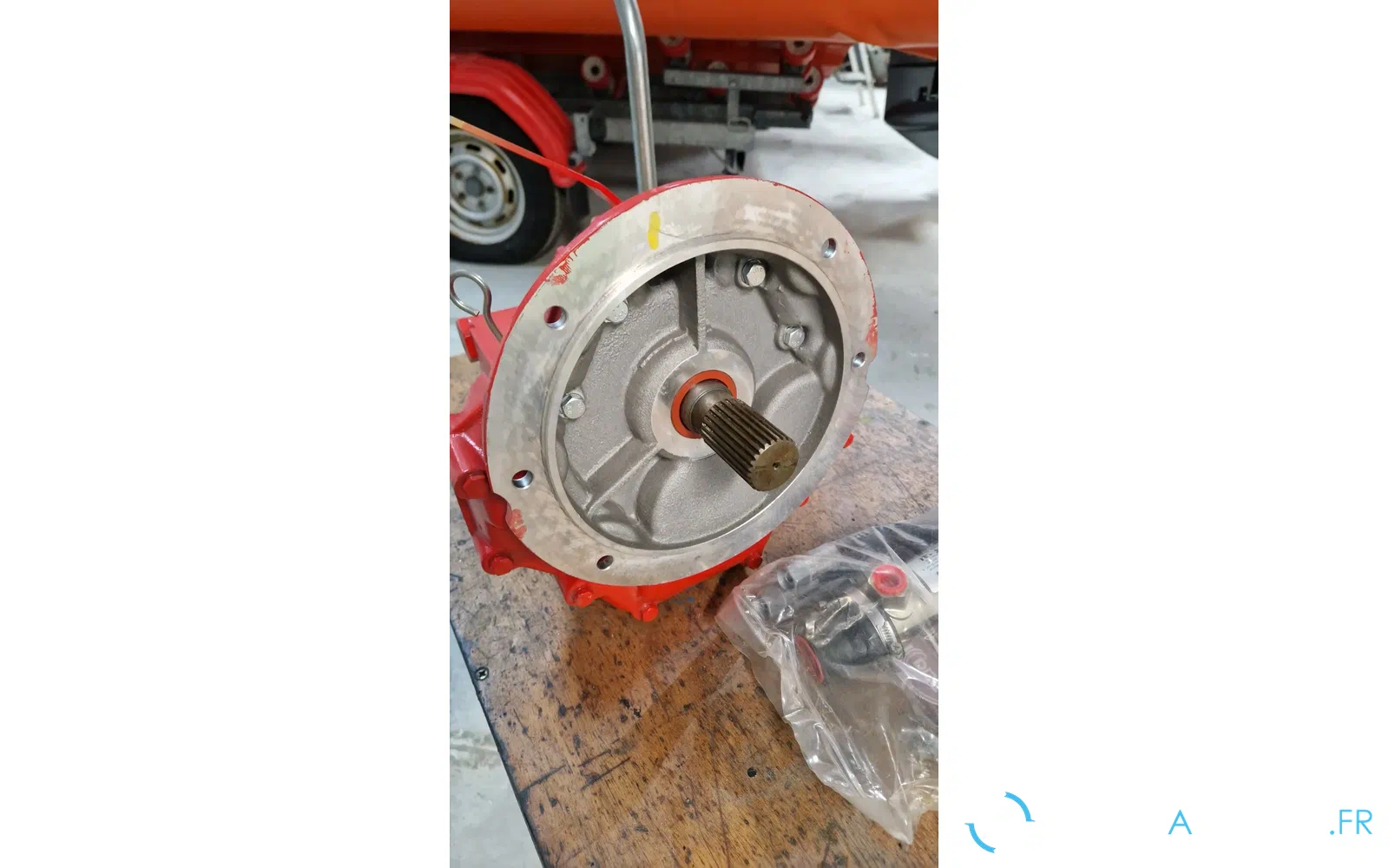

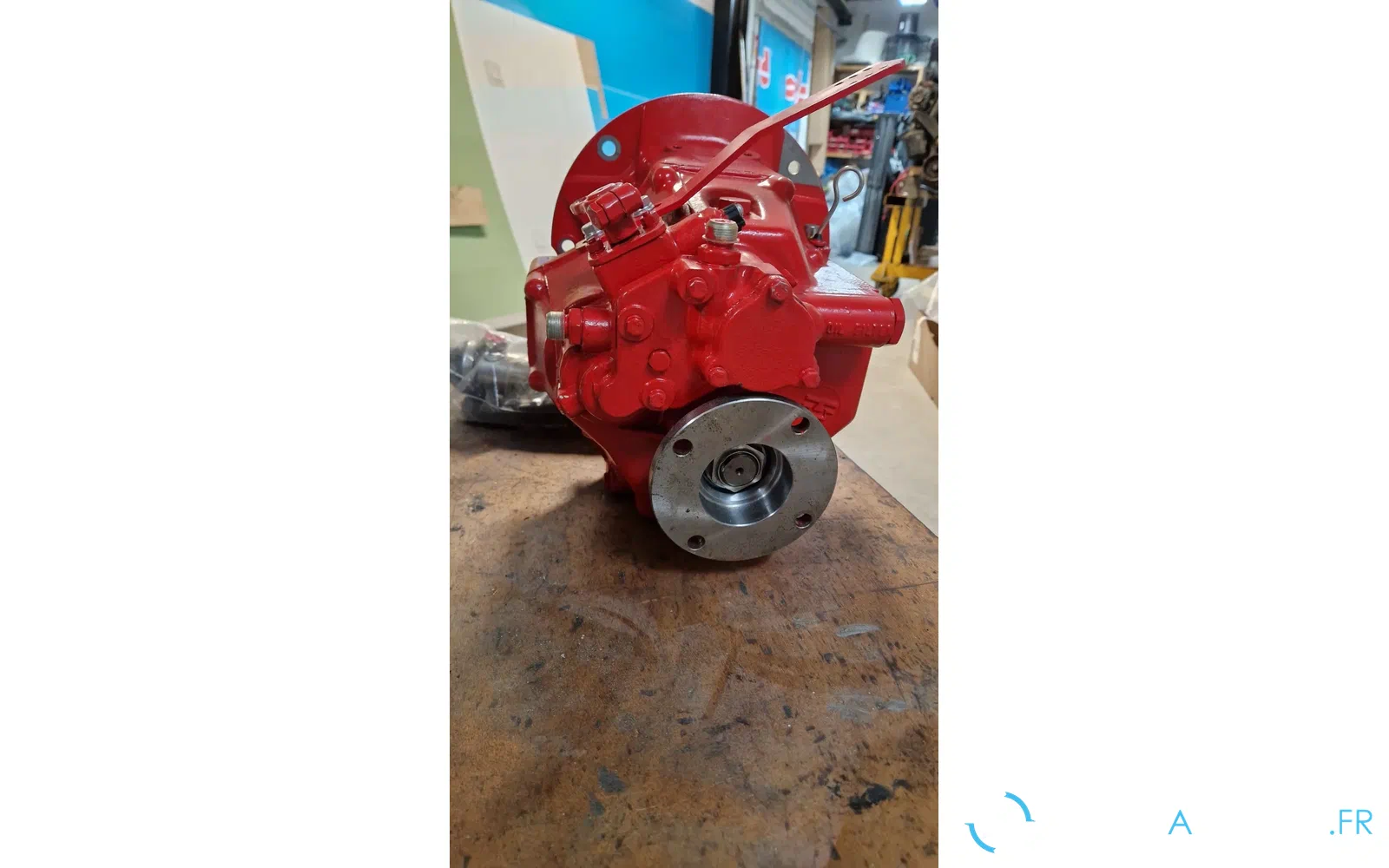

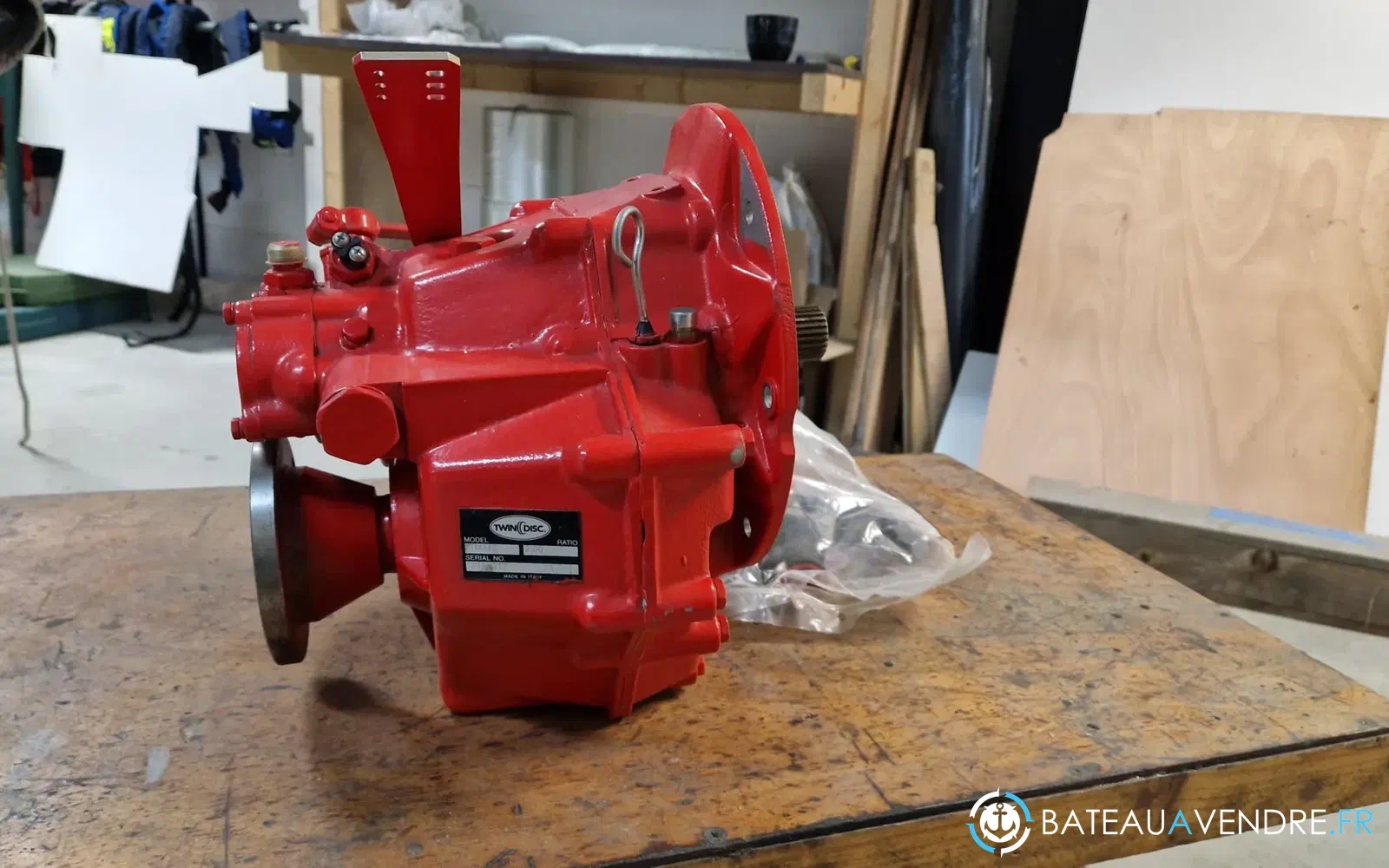

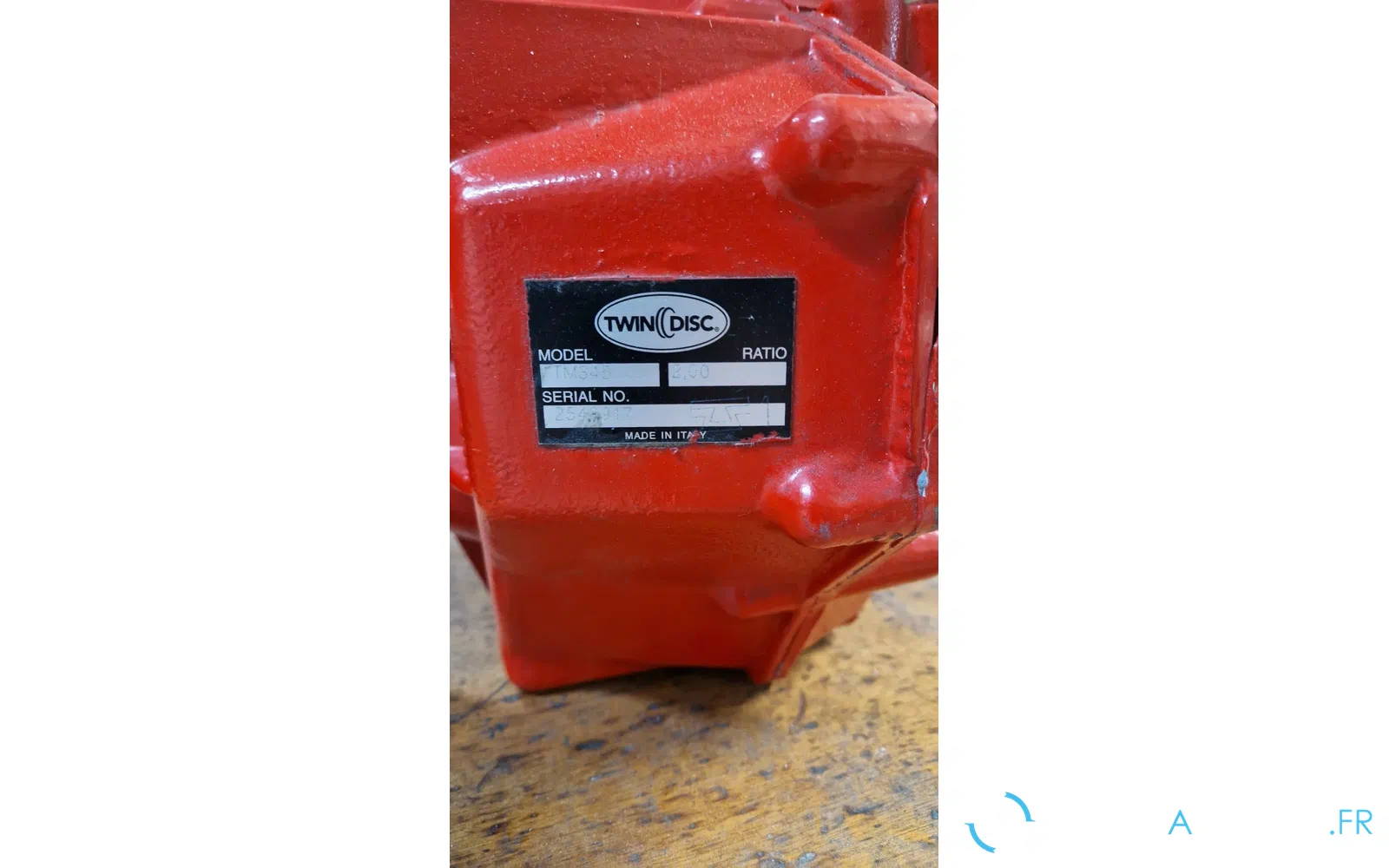

TMC-345 Reversing Reducer

Reverser Reducer TMC-345 Hydraulic

Technodrive TM-345 Hydraulic Reverser Reducer,

Right Output Ratio 2.00/1 forward drive

(2.00 engine revolutions for 1 propeller turn)

and 2.00/1 in reverse

Output 0°

Weight: 25 kg

Oil capacity: 1.6 liters flat

Recommended oil type: SAE 15W40

Max temperature: 95 °C

Maximum tilt: 15° *

Male spline shaft type: SAE2040 DP Z=26

Speed transfer via mechanical linkage, suitable for recreational boating, shift operation: "Smooth and silent"

Command orientation: horizontal or vertical, thanks to its modular cable support.

Also available with: Ratio 2.00/1, 2.47/1, 1.54/1

Important: All TMC-345 reverser reducers are reversible and all have the same ratio for reverse: ideal for dual-motor setup.
